H2 KDS

Product Overview

Boost efficiency and accuracy with the H2

Kitchen Display System, designed to

seamlessly connect servers and kitchen staff.

Instant order updates minimize errors and

delays, streamlining every step of the

workflow.

Built for Performance

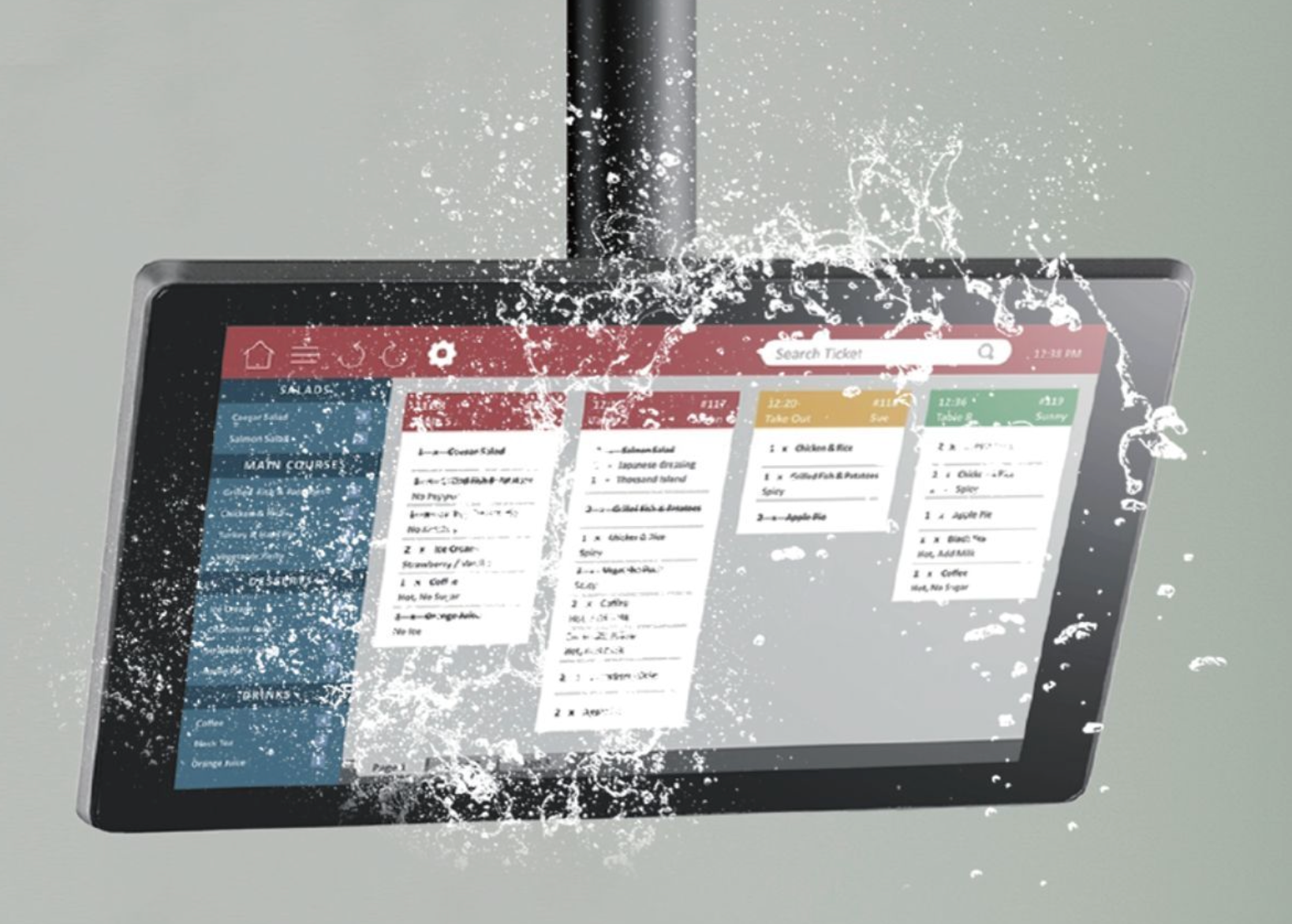

A durable all-aluminum body with oil- and

water-resistant surface ensures reliability in

demanding kitchens. Optical bonding

technology enhances screen clarity,

brightness, and longevity.

Display Options

Available in 15.6" and 21.5" Full HD (1920×1080) touchscreens with 280 nits brightness and

projective capacitive touch for smooth, precise control.

System Choices

-Windows 10 (Intel N95): 4GB RAM / 128GB storage

-Android 11 (RK3566): 2GB RAM / 16GB storage

Connectivity & Power

Includes USB 2.0 / 3.0, LAN RJ45, and DC 12V input (5A for 15.6"

, 7A for 21.5").Details

-Improved POS Technology Yields

-Efficiently link servers and kitchen staff with SUIYI's Kitchen Display Hardware.

Instant order input minimizes delays and errors, optimizing kitchen

productivity.

Our KDS features an all-aluminum body for efficient heat dissipation, oil and

water-resistant screen surface, and crucially, optical bonding technology for screen treatment, which will significantly enhance display performance and longevity. It transforms into a true Kitchen

-Display System (KDS) and ideal solution for demanding kitchen

environments.

SYSTEM

-Processor N95 RK3566

-Memory 4GB 2GB

-Storage 128GB 16GB

-OS Windows 10 Android 11

-DISPLAY Type 15.6" TFT LED Backlight 15.6" / 21.5" TFT LED Backlight

-Screen treatment Optical Bonding Optical Bonding

-Resolution 1920*1080 1920*1080

-Aspect Ratio 16:9 16:9

-Brightness 280 nits 280 nits

-Touchscreen Projective Capacitive Touch Screen Projective Capacitive Touch Screen

INTERFACE

-USB 1*USB2.0, 1*USB3.0 1*USB2.0, 1*USB3.0

-LAN 1*RJ45 1*RJ45

-Power DC-IN Input AC 100~240V/50~60hz, Output DC12V/5A

-Input AC 100~240V/50~60hz, Output DC12V/5A for 15.6"

 12V/7A for 21.5"

-POE power supply N/A Support

PHYSICAL&ENVIRONMENTAL

-Operating Temperature Operating 0~60°

-Operating Temperature Storage-35°~75°

Dimensions(W×H×D) 15.6": 378*240*42(MM)

21.5": 515*311*51(MM)

Packing Dimensions(W×H×D) 630*460*170(MM)

-Net Weight 6KG

-Gross Weight 9KG

-Color Dark Gray

-Certification CE,FCC,RoHS

OPTIONS & PERIPHERALS

-Wifi 2.4G-WIFI

-Bluetooth Bluetooth 4.0 protocol(option)

-Speaker Built-in 3W speaker

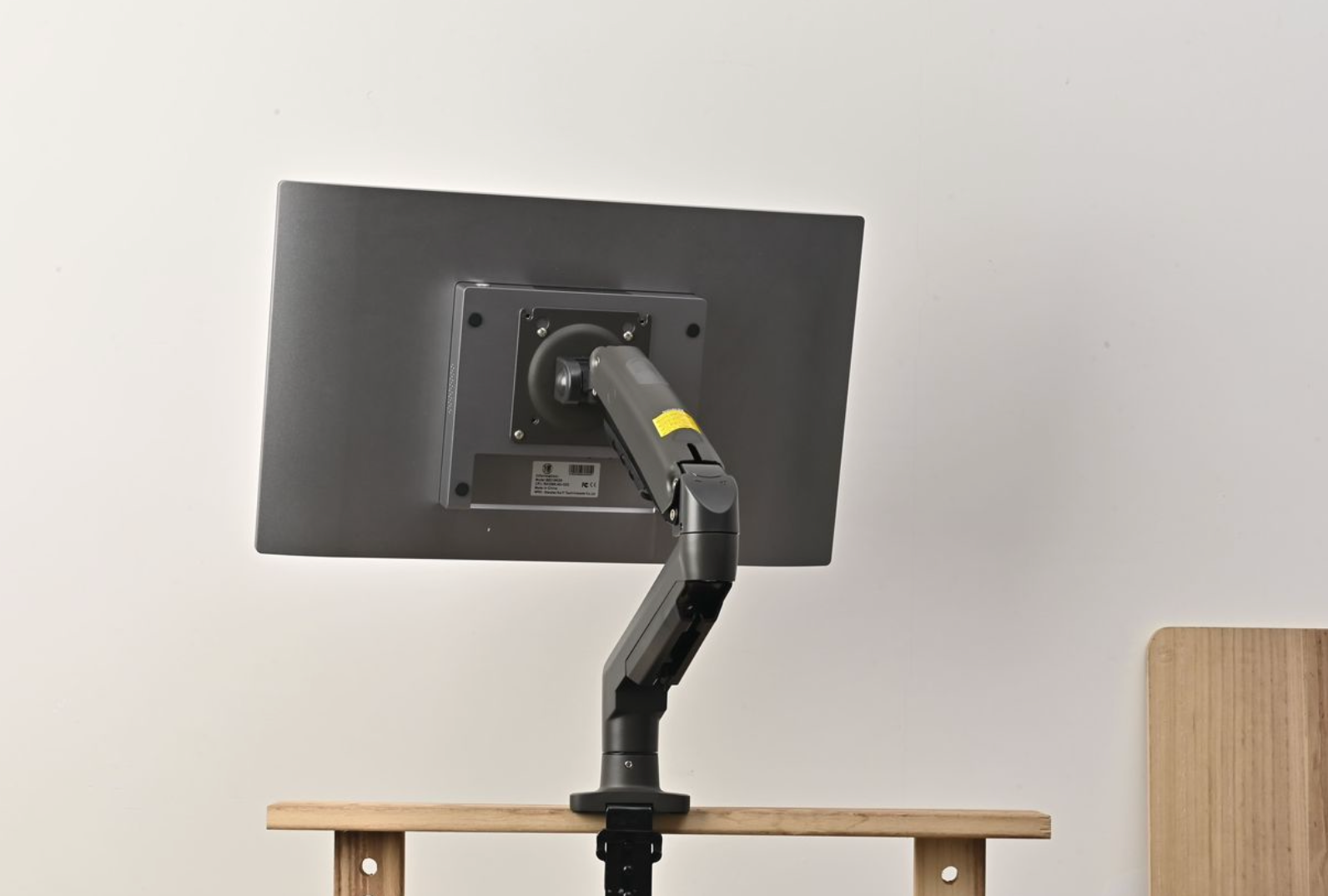

-Wall Mount VESA 75*75mm

(To apply those add on options send us a message through our contact form for a custom order)
